Universal plug, more convenient
Easy mounting
High fouling resistance
No inner leakage
Easy cold start

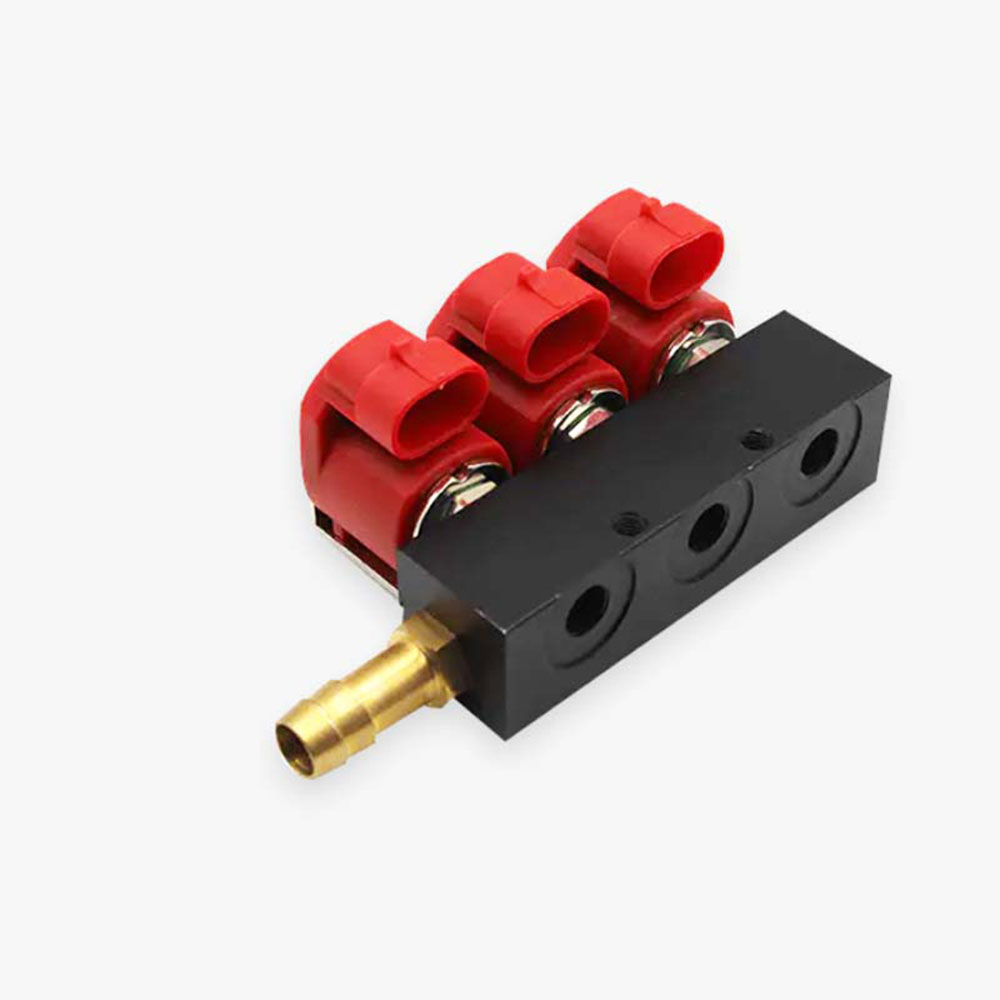

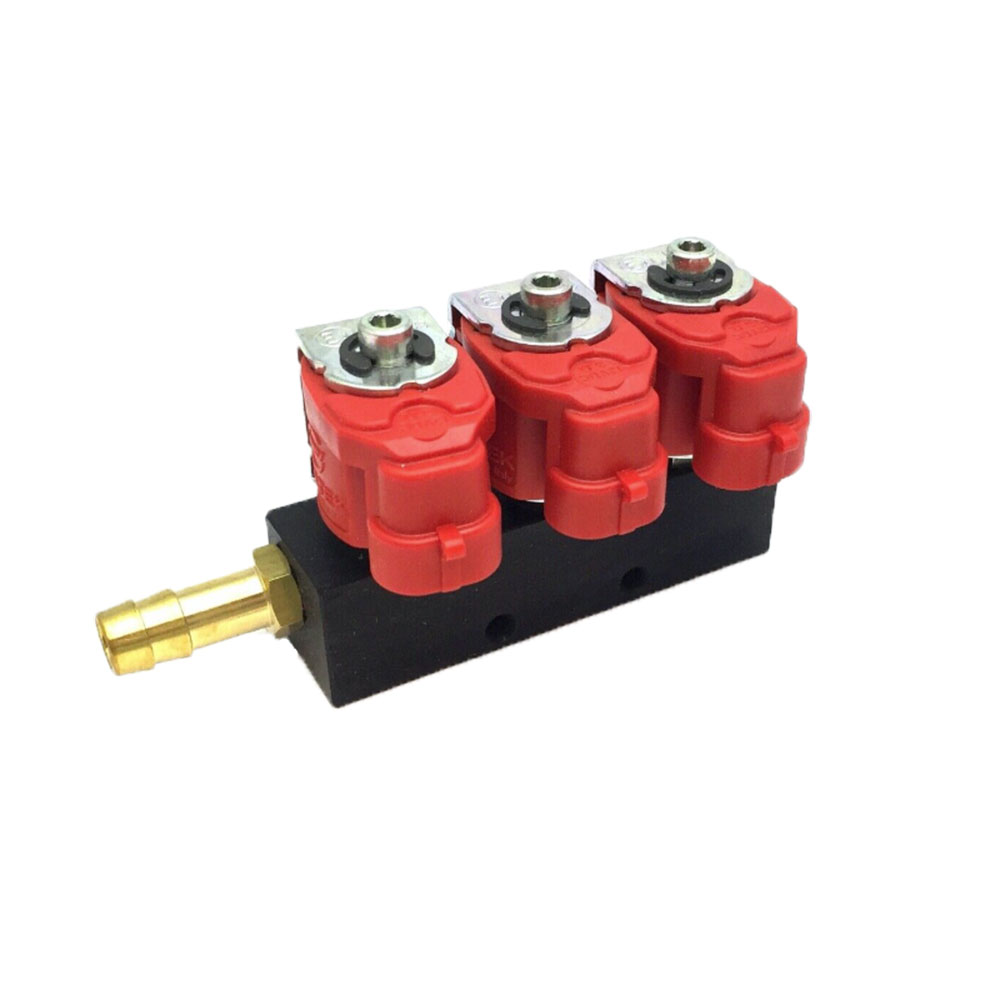

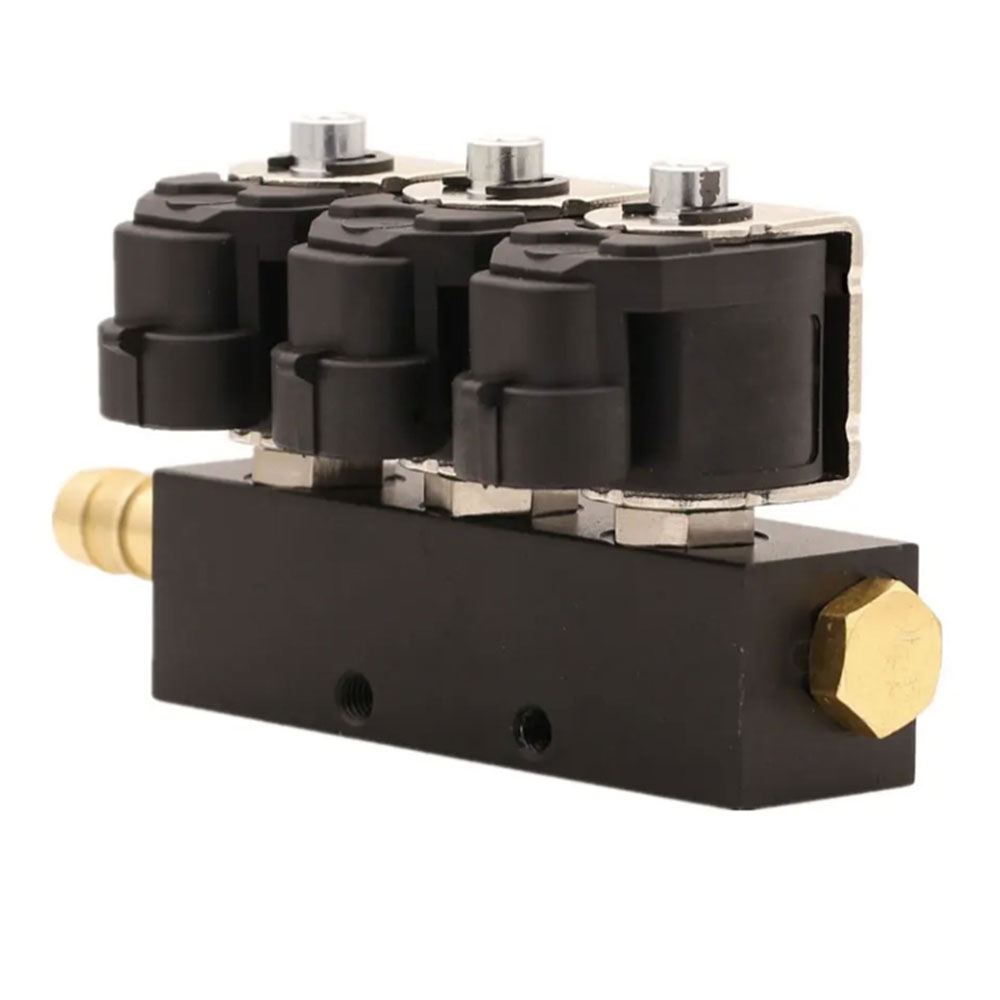

The injectors rail is an electro-mechanical component, provides correct gas quantity required in various work conditions into engine intake, which is fixed after the pressure reducer and before the engine intake manifolds.
The injectors rail is suitable for two fuels: CNG, LPG.
This rail is composed by 3/4 injectors, can be applied to various vehicles.
Tech. Specifications
|
Fuel |
LPG, CNG |
|
Cylinders |
3-cylinder, 6-cylinder |
|
Working temperature |
-40°C/+120°C |
|
Coil resistance |
3 Ohm/2 Ohm |
|
Maximum input pressure |
3.2 bar |
|
Work relative pressure |
2 bar (CNG) |
|
Coil supply voltage |
DC12V |
|
Operating voltage range |
8-16 V |
|
Nozzle Diameter |
1.5~4mm |
|
Working pressure |
1.5~3bar |
|
Inlet connection |
Ø10mm, Ø16mm |
|
Outlet connection |
M8x1, Ø7mm |
