Item

Value

Remark

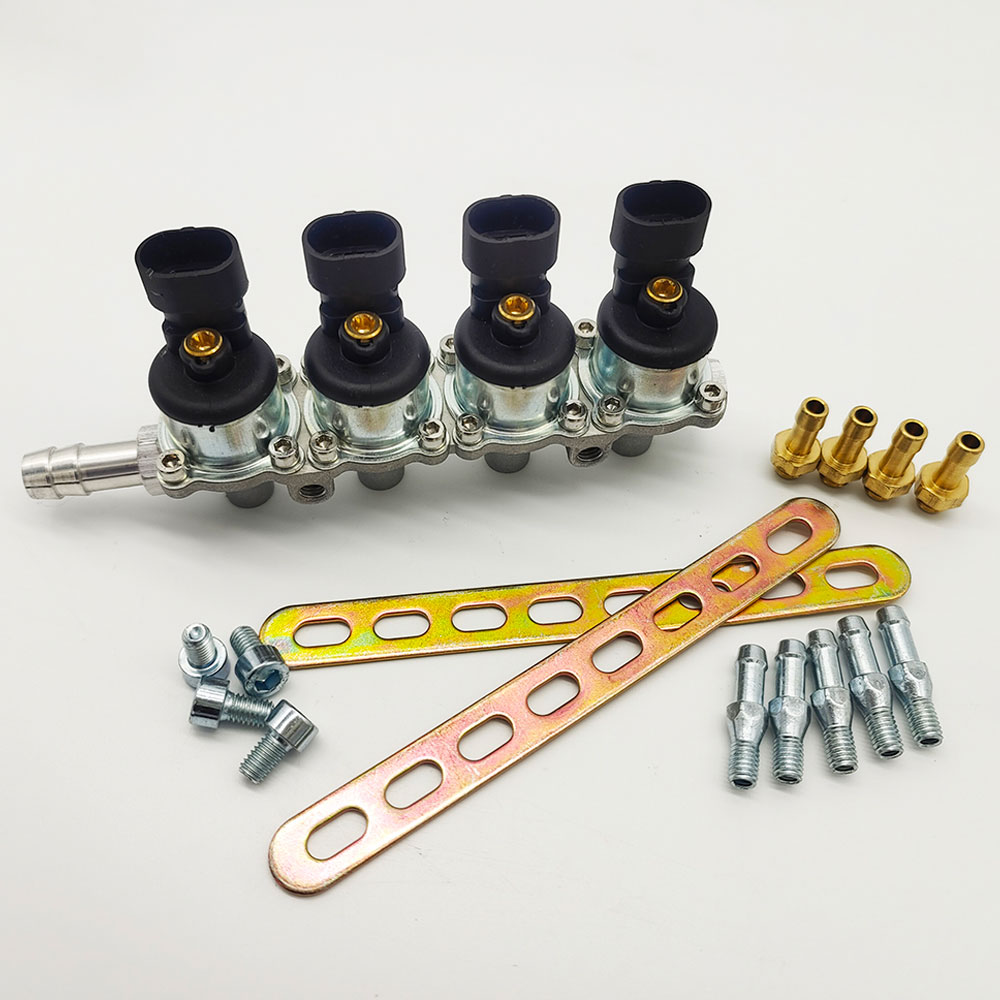

Injector version

Applying for 2, 3, 4-cylinder

Material body and treatment

Aluminum

Relative pressure

From 0.5 to 3.0bar

working pressure

4.5Bar

Max pressure

Related voltage (at coil)

10.8-14.4 volt

Minimum copper wire section for coil connection

0.75mm2

Resistance

2Ω

± 5% at T= 25°C

Seat Diameter

3.3mm

Calculated max flow rate (with max nozzle Φ) for 1 single injector CNG at 20°C (G20 CNG fluid)

6.2kg/h

at 1 bar inlet pressure

9.4kg/h

at 2 bar inlet pressure

Calculated max flow rate (with max nozzle Φ) for 1 single injector LPG at 20°C

10.3kg/h

at 1 bar inlet pressure

14.8kg/h

at 2 bar inlet pressure

Leakage (tested with air)

≤ 15 cc/h

Compatibility with gas

LPG, CNG

Driver Stage

Peak and Hold (PWM)

Inlet gas fitting for rubber hose

Ø10 mm / Ø12 mm / Ø14 mm / Ø16 mm

Outlet gas fitting

Calibrated nozzles M8x1 for rubber hose Ø4 mm - Ø5 mm - Ø6 mm

Calibrated hole ᴓ range (for nozzles)

From Ø1.00 to 3.25 mm (0.25 mm step)

Operating ambient temperature range

-40°C / +120°C

Principle of operation

Solenoid valve - Normally closed - Mobile plunger

Power handling capability LPG

1 bar up to 40 HP/cyl

Power handling capability CNG

2 bar up to 35 HP/cyl

Coil IP Rating

IP67
