Valves

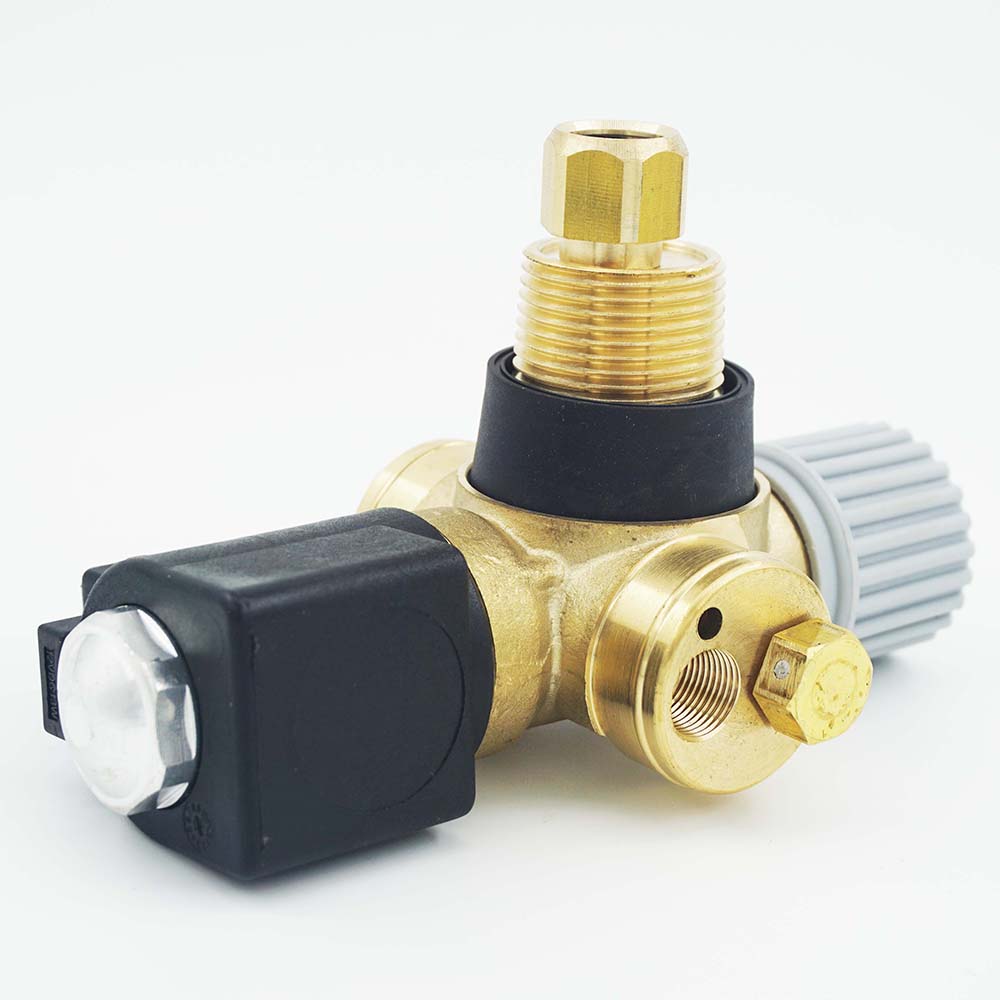

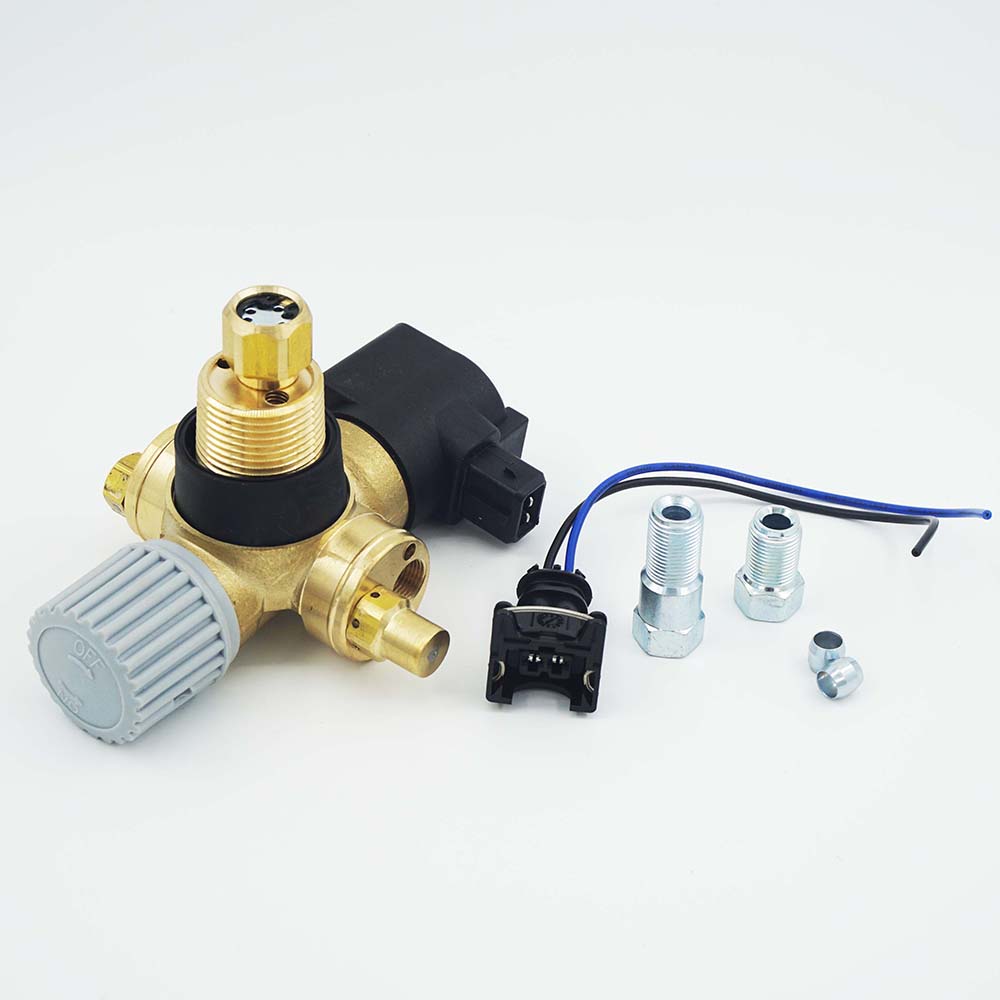

CNG Cylinder Automatic Valve
CNG inlet filtering system
Low absorption solenoid valve
Universal thread connections to match every application
Low absorption solenoid valve
Universal thread connections to match every application
Details
These valves are designed for the head of CNG cylinders which allow flow both in and out. Both manual and solenoid options available. Most include integrated PRD""s for safety.
Tech. Specifications
|
Type |
CNG Cylinder Automatic Valve |
|
Material |
Hot forged brass CNC machined |
|
Operating temperature |
-40°C/+85°C |
|
Maximum working pressure |
26MPa |
|
Nominal diameter |
Φ5mm |
|
Protection temp. |
110±5℃ |
|
Input / output connection |
M12x1 |
|
Switching mode |
Manual |
|
Coil voltage/power |
DC12V, DC24V/13W |
