With OBD module
Temperature range: -40~125 °C
Automobile OEM Quality Assurance
High protection ratings IP 67
Runs efficiently, safely, and environment-friendly
The YZ series electronic control systems
are available in seven versions: YZ24, YZ24 OBD, YZ48, YZ48 OBD, YZ48-8D OBD,
YZ48-6C OBD, and YZ48-8C OBD. These systems feature the latest AI automatic
calibration function and are suitable for multi-point sequential fuel injection
engines with turbocharged and non-turbocharged intake systems.

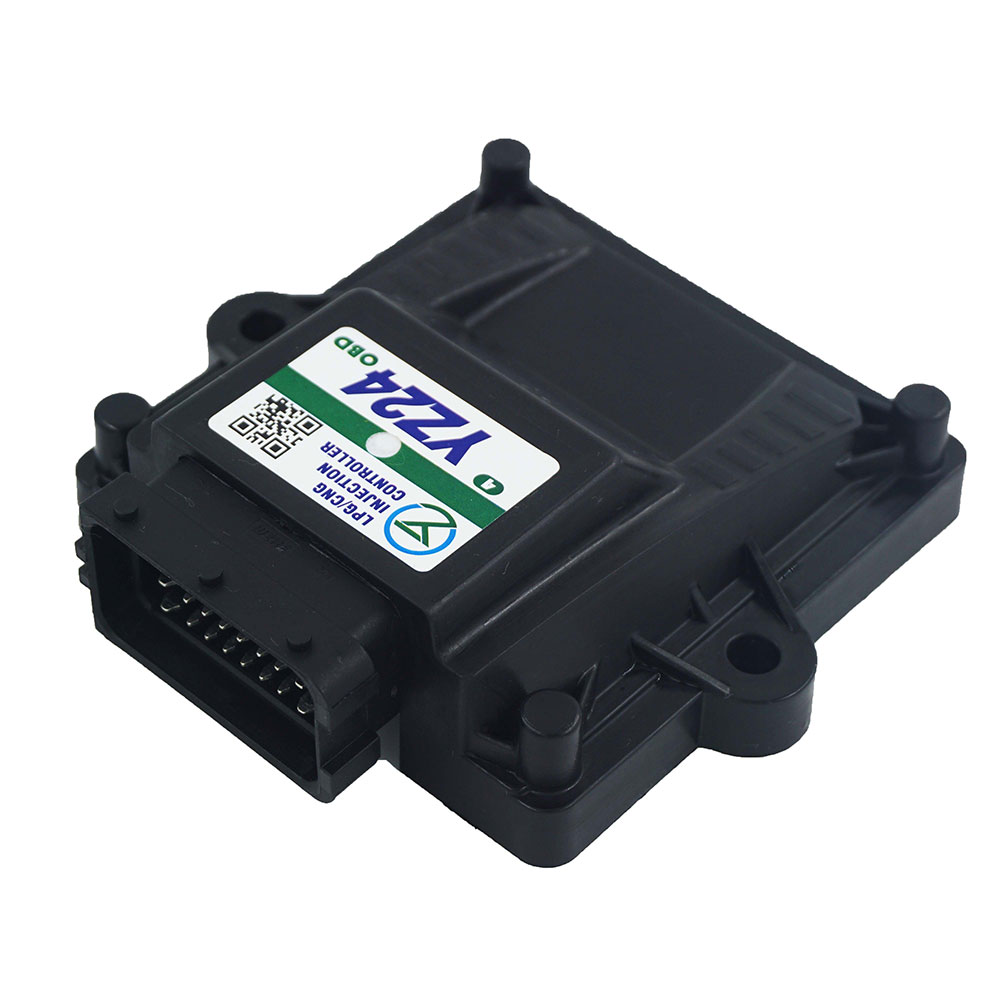

The YZ24 OBD ECU is a self-developed
controller suitable for gasoline and gas dual fuel vehicles, which is designed
for 3, 4cylinders multipoint sequential injection engines.
Tech. Specifications
|
Type |
YZ24 OBD |
|
Supply voltage |
8-16V |
|
Operating temperature |
-40~125℃ |
|
ECU Working Current |
Imax=10A |
|
Static Current |
0.1mA |
|
Dust/Waterproof IP Ratings (IP protection) |
IP67 |
|
Connector pins |
24 pins |
|
Engine type |
3-4 cyl |
|
OBD function |
Yes |
|
Dimensions |
110*109*35mm |
