Excellent thermal efficiency
Fast response
Stable adjustments
Small dimensions

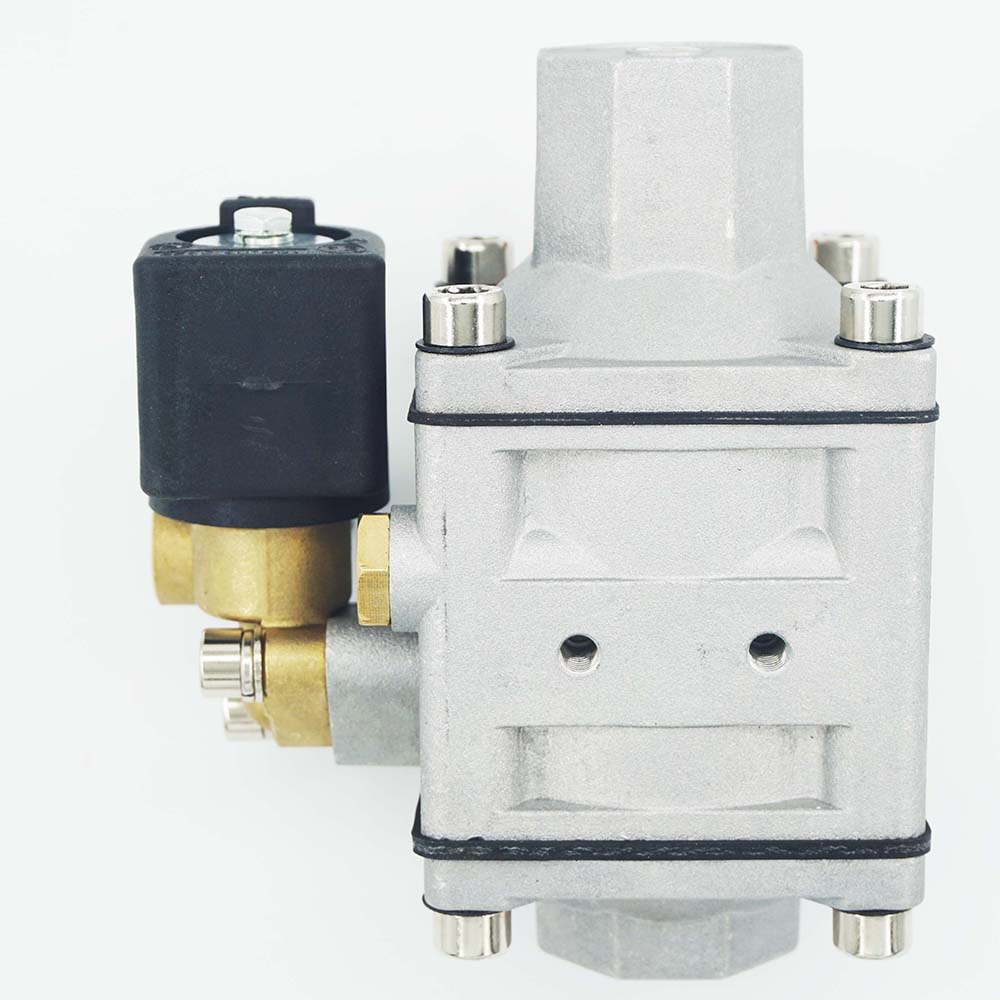

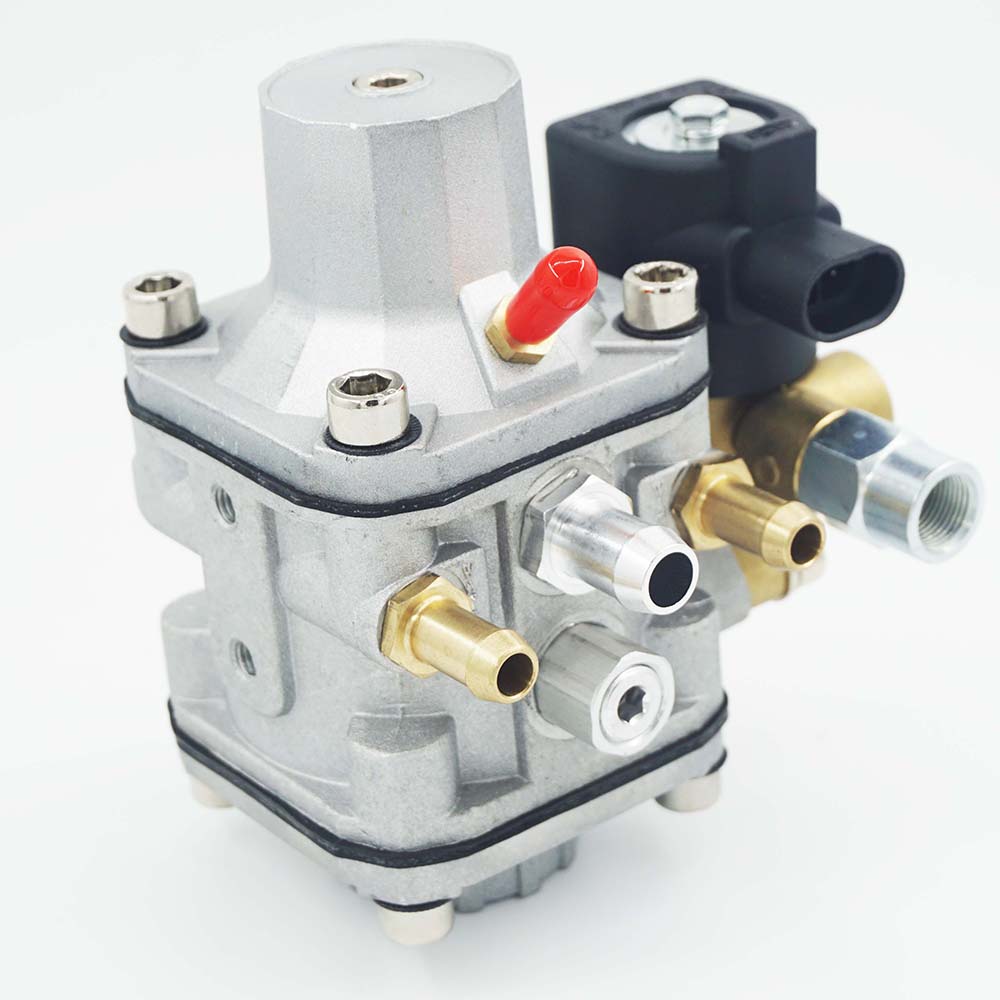

The CNG reducer is designed for car sequential injection systems, used to reduce the pressure of CNG from the tank and provides a constant outlet flow. The outlet pressure of CNG reducer is adjustable through connection of pressure manometer to obtain the best performance.
Tech. Specifications
|
Type |
2 reducing stages reducer |
|
Maximum flow rate |
48m³/h |
|
Working temperature |
-40°C/+120°C |
|
Inlet pressure |
6-220 bar |
|
Outlet pressure |
0.5-2.5 bar |
|
Work relative pressure |
2 bar |
|
Coil features |
DC12V / 20W |
|
Maximum inlet pressure |
250 bar |
|
Material |
Alu, brass, PVC |
|
Gas inlet connection |
Ø6mm |
|
Gas outlet connection |
Ø10mm |
|
Water outlet diameter |
Ø16mm |
