Ignition advanced processor

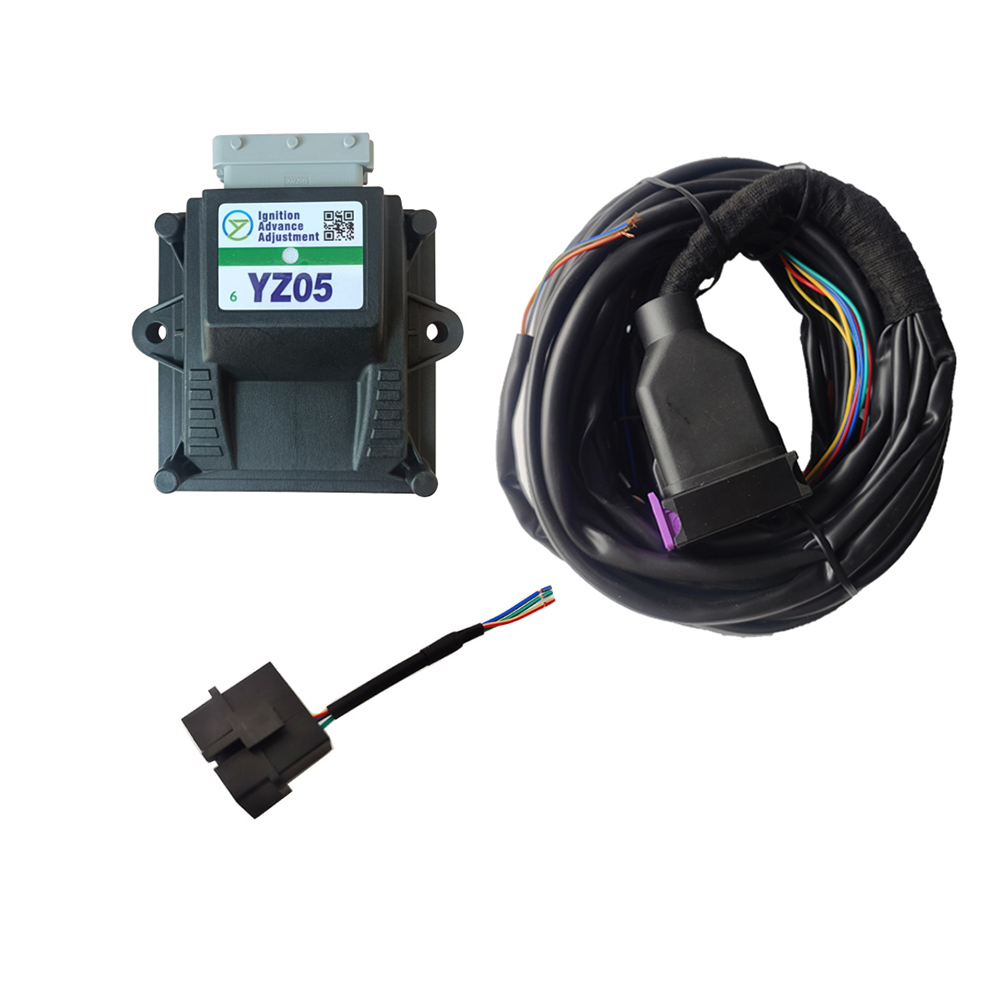

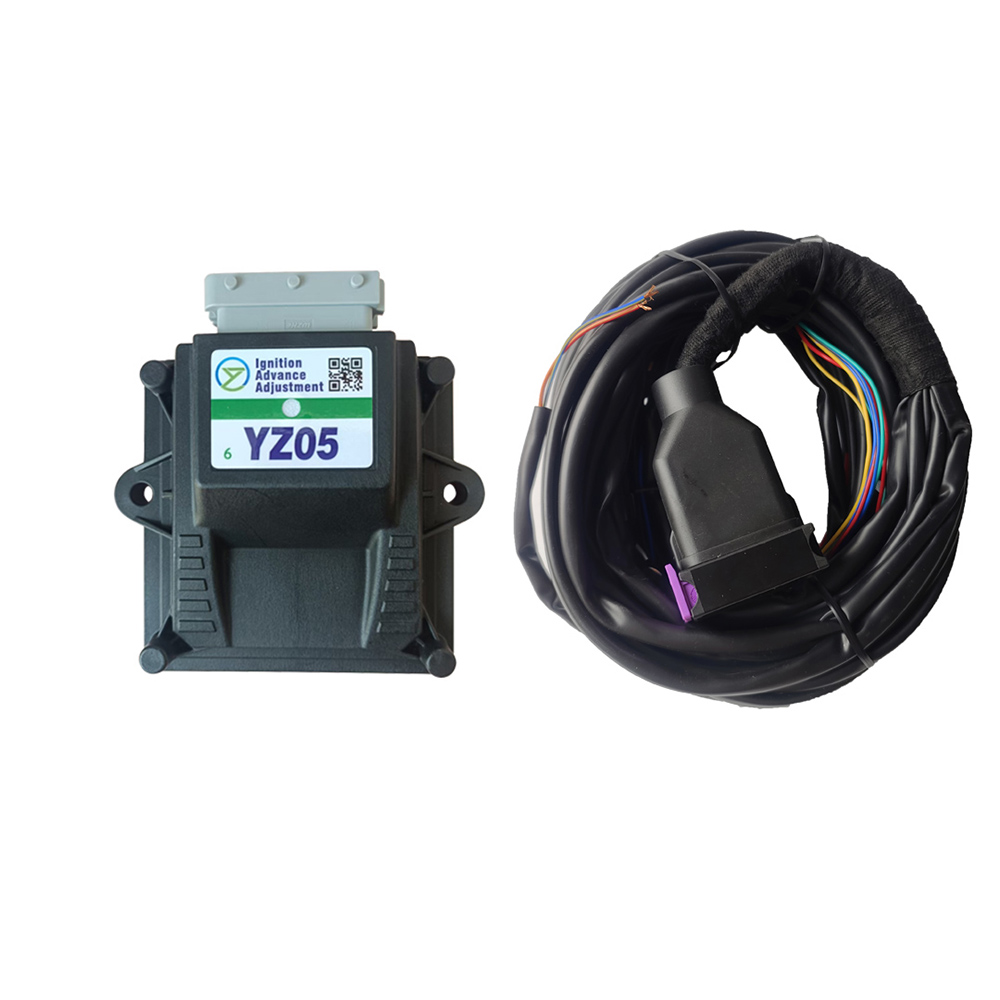

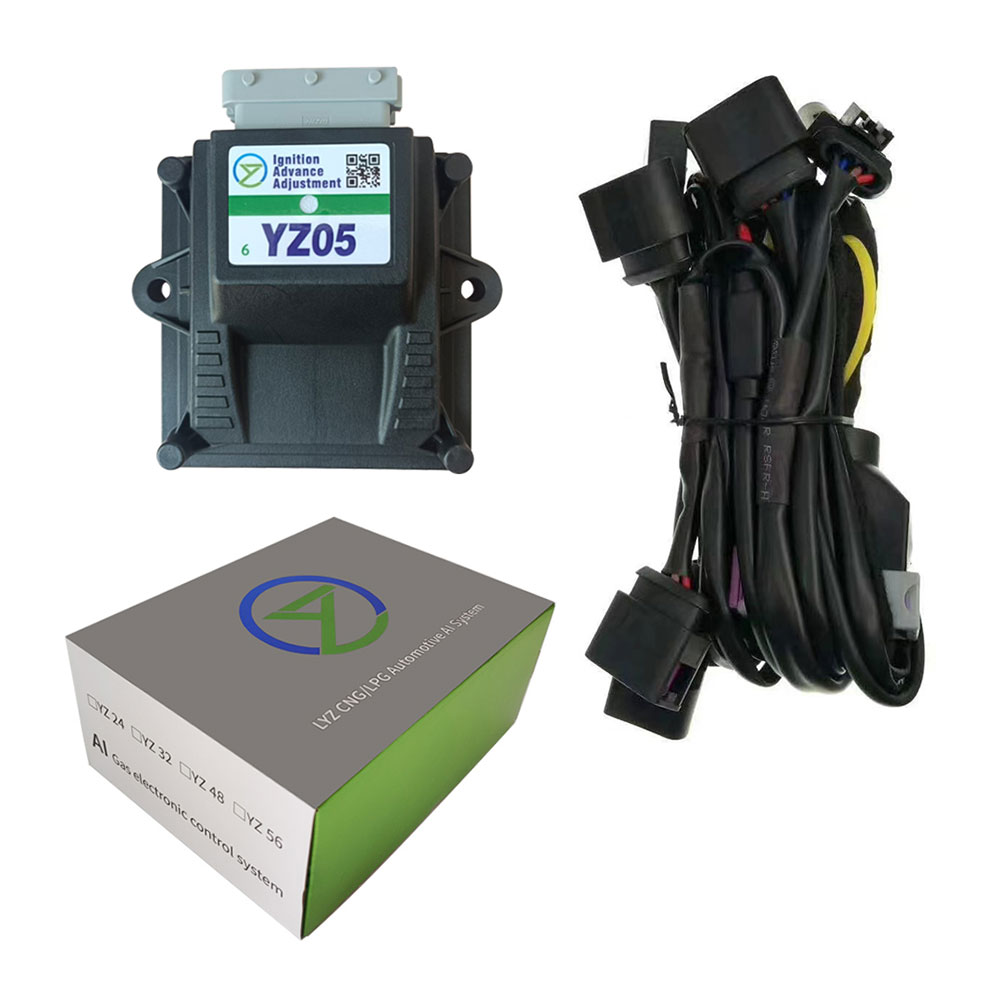

Intelligent Ignition Advanced Processor - YZ05
Automotive-Grade Chip
Broad Compatibility
Zero Static Power Consumption
Integrated OBD Functionality
Fully Adjustable Ignition Timing
Flexible Load Signal Input
Protection Circuitry
Cam Signal ReservedEnhanced Ignition Energy
Software-Based Jumper Function
Seamless Gas System Integration
User-Friendly Calibration Software
Broad Compatibility
Zero Static Power Consumption
Integrated OBD Functionality
Fully Adjustable Ignition Timing
Flexible Load Signal Input
Protection Circuitry
Cam Signal ReservedEnhanced Ignition Energy
Software-Based Jumper Function
Seamless Gas System Integration
User-Friendly Calibration Software
Details
The YZ05 series ignition controller is designed for intelligent 5V ignition systems. It includes two models: the YZ05-4 for 4-cylinder engines and the YZ05-6 for 6-cylinder engines.
Tech. Specifications
|
Type |
YZ05 ignition advanced processor |
|
Supply voltage |
8-16V |
|
Operating temperature |
-40~125℃ |
|
Max. static Current |
<0.1mA |
|
Dust/Waterproof IP Ratings (IP protection) |
IP67 |
|
Connector pins |
24 pins |
|
Engine type |
4 cyl,6 cyl |
